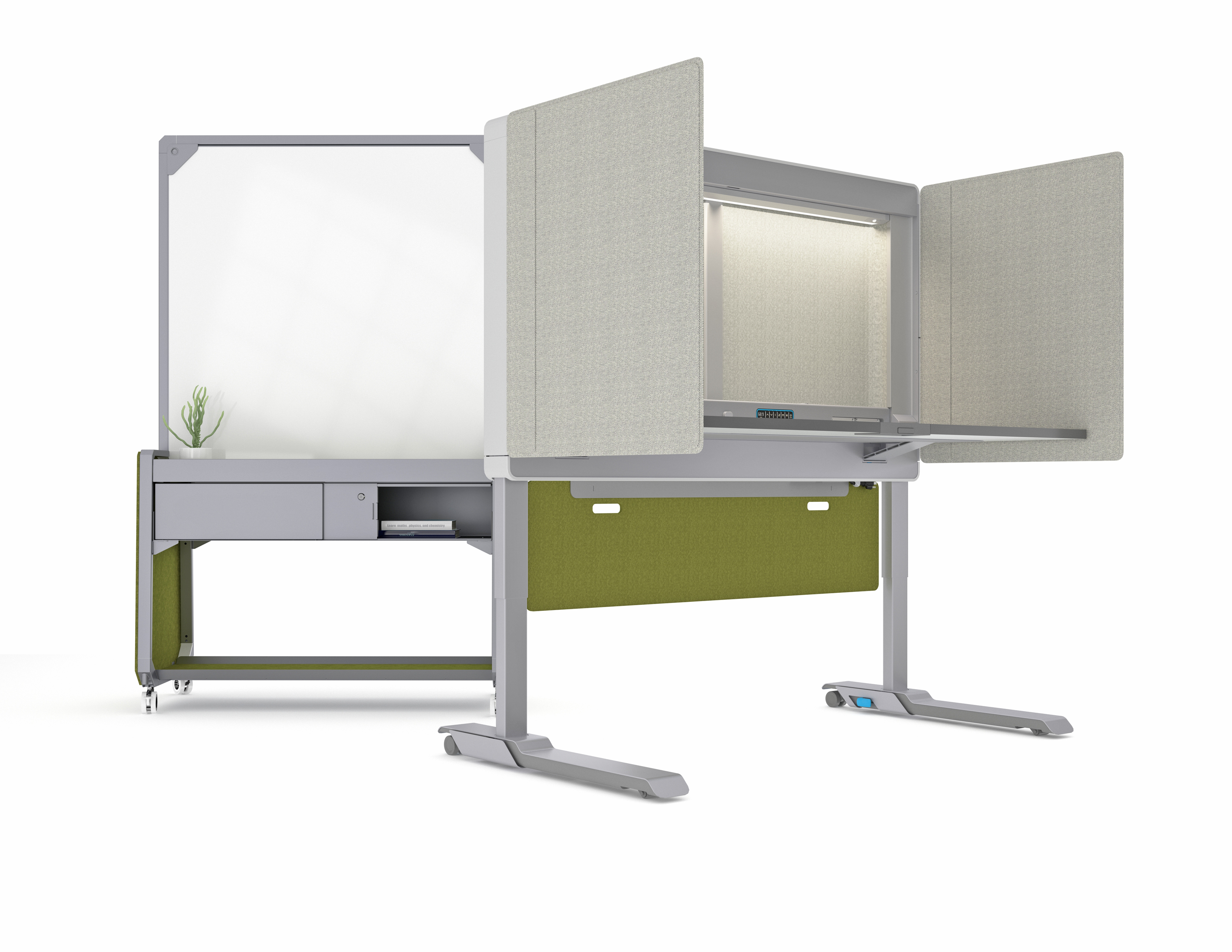

Amobi Desk Specifications

Accoustic Panel NRC Value .80
Active Consumption 0 - 280W (under 176 lbs maximum loading)
Columns 3-Stage
Compliance BIMFA X5.5-2021
Decibel Rating 55db≤
Desk Weight 54": 182 lbs, 60": 192 lbs
Environmental SCS IAQ Gold
Feature Anti-Collision (Gyro Sensor)
Flammability UL723, TB117
Frequency 60Hz
Front Handset Push button with 2 programmable settings and LED Light Control
Input Amps 3A (Maximum 3.6A)
Magnetic Side Panels NRC Value .45
Magnetic Side Panels Dimensions 33”H x 27”D
Maximum Monitor Width 27”
Monitor Mount Weight Capacity 15 lbs
Output Receptacle 120V, 10A
Overcurrent Protection Yes
Product Overall Height Adjustment Range 39.9" - 78.8"
Rear Handset Up/Down Push Button
Speed 30mm/s
Standby Consumption 0.2W
Total Stroke 38.9"
UL UL962 Listed
USB-A Output 2.1A / 5V (10.5W)
USB-C Output 1.5A /12V (18W)
Volts 120V AC
Watts 400W (Maximum)
Whiteboard Surface Painted Steel
Worksurface High-Pressure Laminate with 2mm plastic edge
Worksurface Depth 25"
Worksurface Height Adjustment Range 9.9" - 48.8"
Worksurface Maximum Capacity 176 lbs
Worksurface Thickness 1"
Worksurface Width 54", 60"
